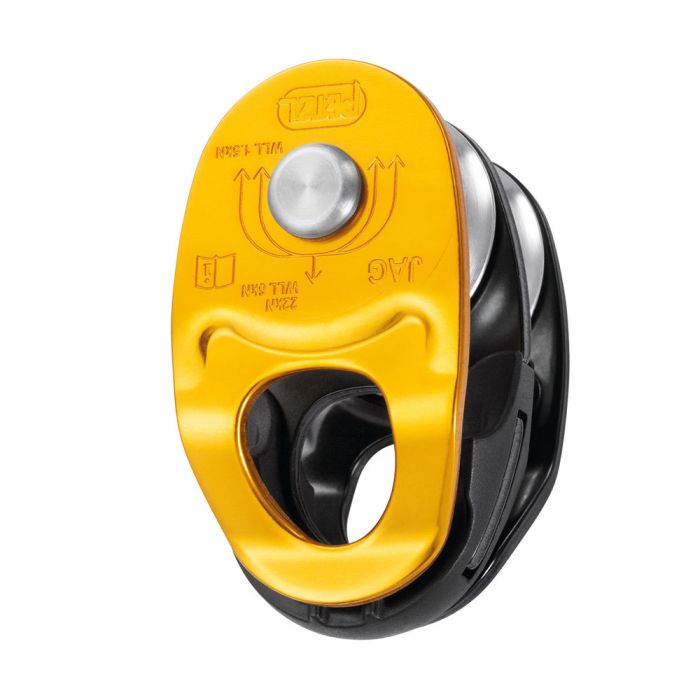

Petzl Pulley JAG
The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.
Petzl Pulley JAG
-
Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
-
Sheaves mounted on sealed ball bearings for excellent efficiency
Specifications
Weight - 120g
Material - Aluminium, Nylon
Certification - CE EN 12278, UKCA, NFPA 2500 Technical Use
Min. Rope Diameter - 8mm
Max. Rope Diameter - 11mm
Sheave Type - Sealed Ball Bearings
Sheave Diameter - 25mm
Maximum Working Load - 2 x 1.5kN x2 = 6 kN
Breaking Strength - 2 x 4kN x 2 = 16 kN
Efficiency - 91%
Please note that we do not hold all petzl items in store, please allow for 7-14 days before delivery. If you require the item by a certain date, please reach out before placing your order.
