Fidlock Tool 3

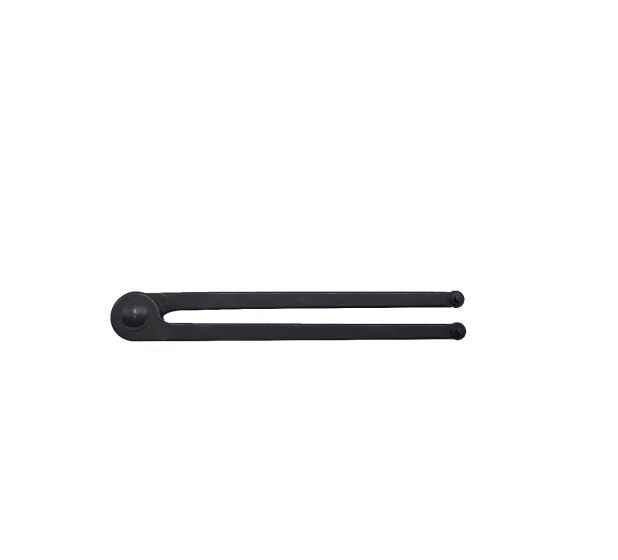

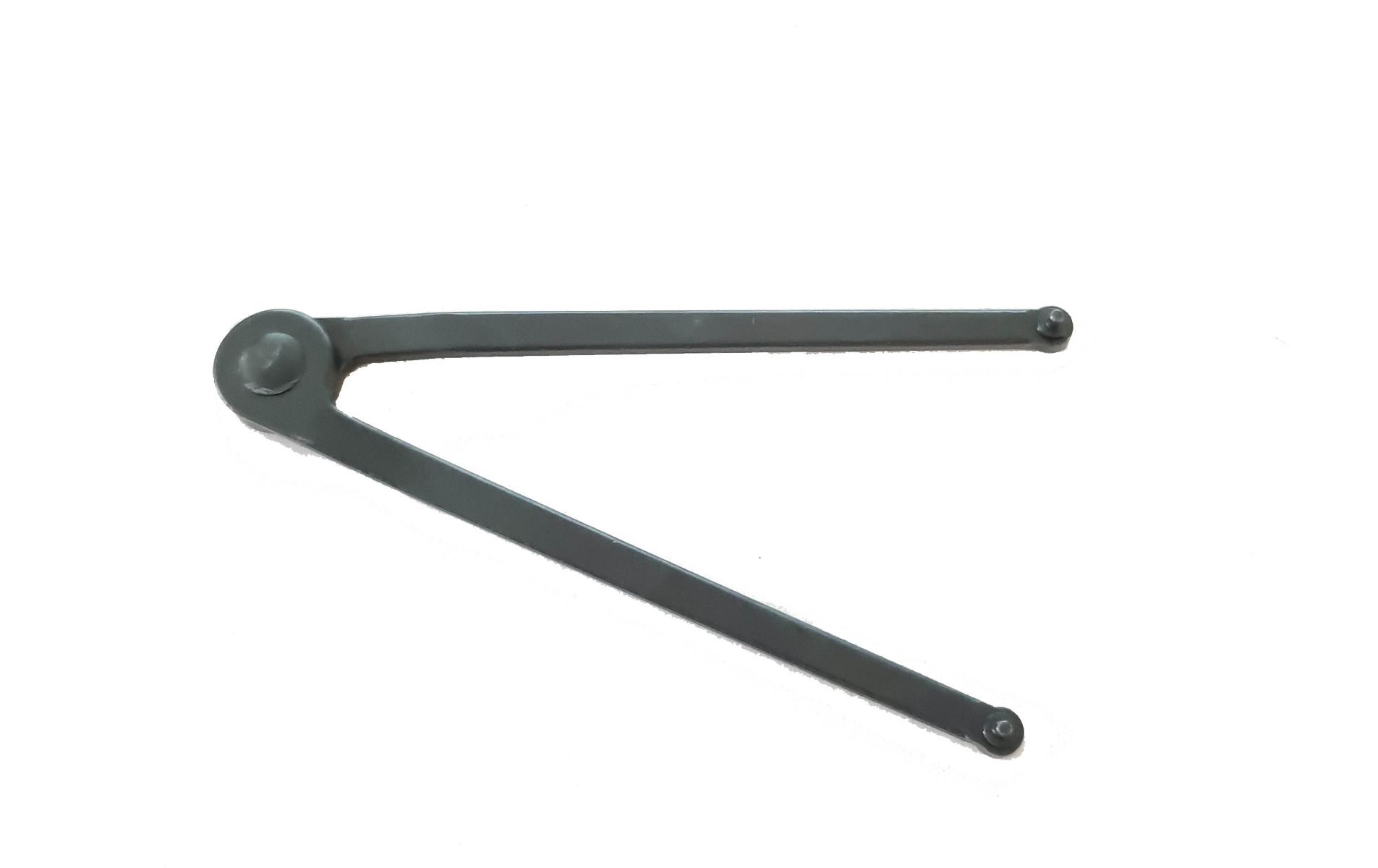

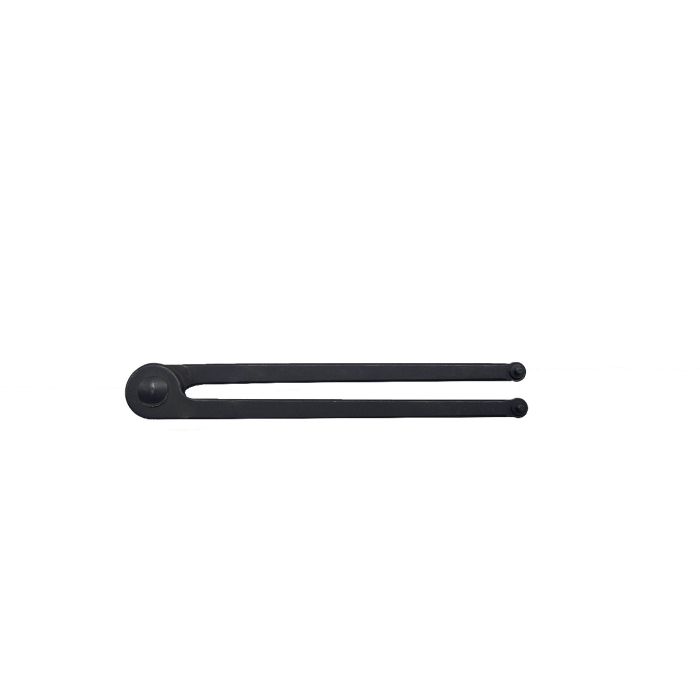

The adjustable face spanner is used for manually fitting both the male upper fastener parts and the female lower fastener parts of the MINI TURN thread. It is also perfect for fitting many SNAP fasteners.
The adjustable face spanner is used for manually fitting both the male upper fastener parts and the female lower fastener parts of the MINI TURN thread. It is also perfect for fitting many SNAP fasteners.
As an alternative to TOOL3, a combination of TOOL1 and TOOL2 can be used. Fidlock recommend using TOOL1 and TOOL2 for fitting the BIG TUEN series. For fitting the MINI TURN series and samples for sales people, they recommend using TOOL3
Fitting

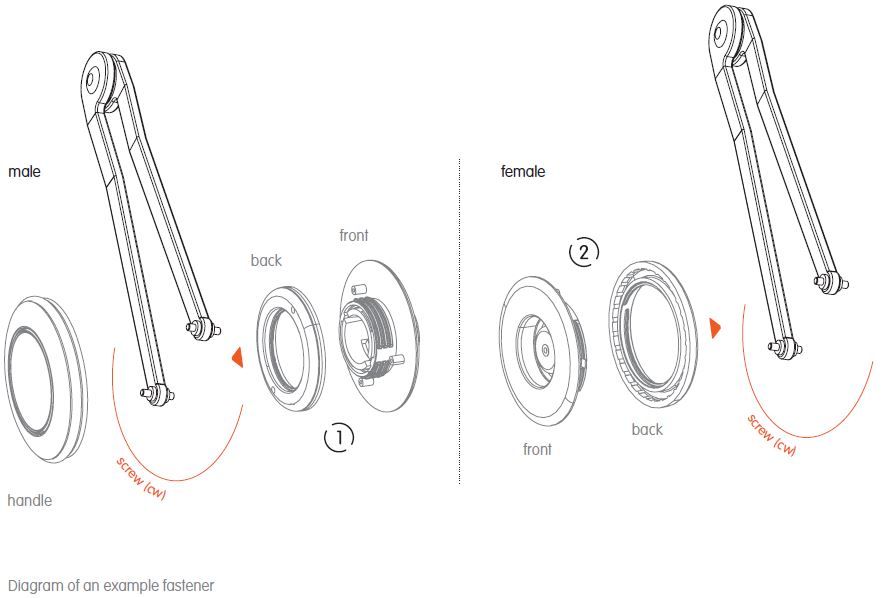

The MINI TURN thread can be easily fitted using a single tool (TOOL3). For the male upper fastener part (1), the back and front sections are placed onto TOOL3 (face spanner) and screwed into one another in a clockwise direction. The same work step is then carried out for the female lower fastener part (2). Finally, the handle is simply clipped onto the male part and aligned.
Technical Data/Details
Material: Burnished Steel
Used for: Male MINI TURN Thread and Female MINI TURN Thread
