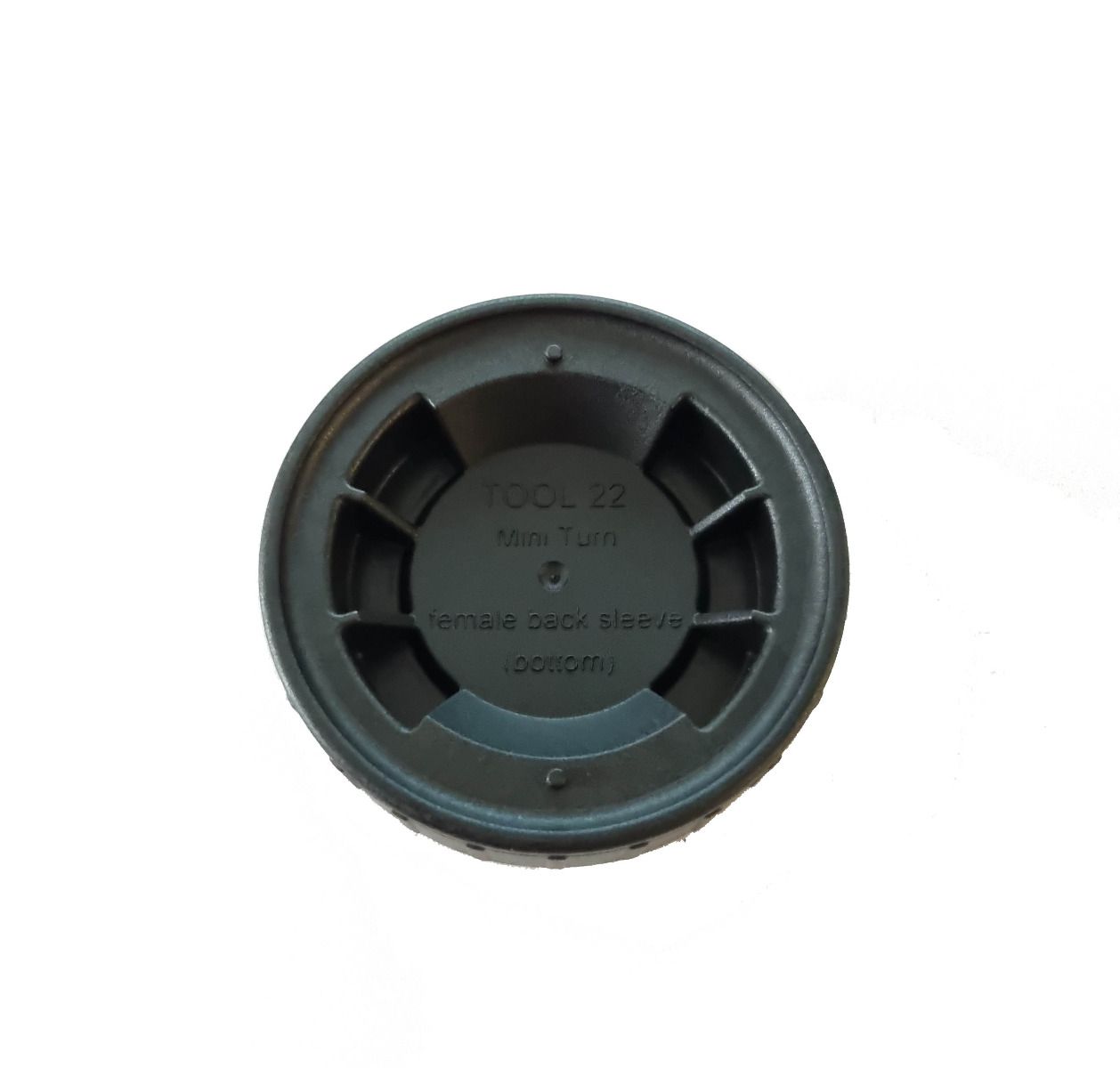

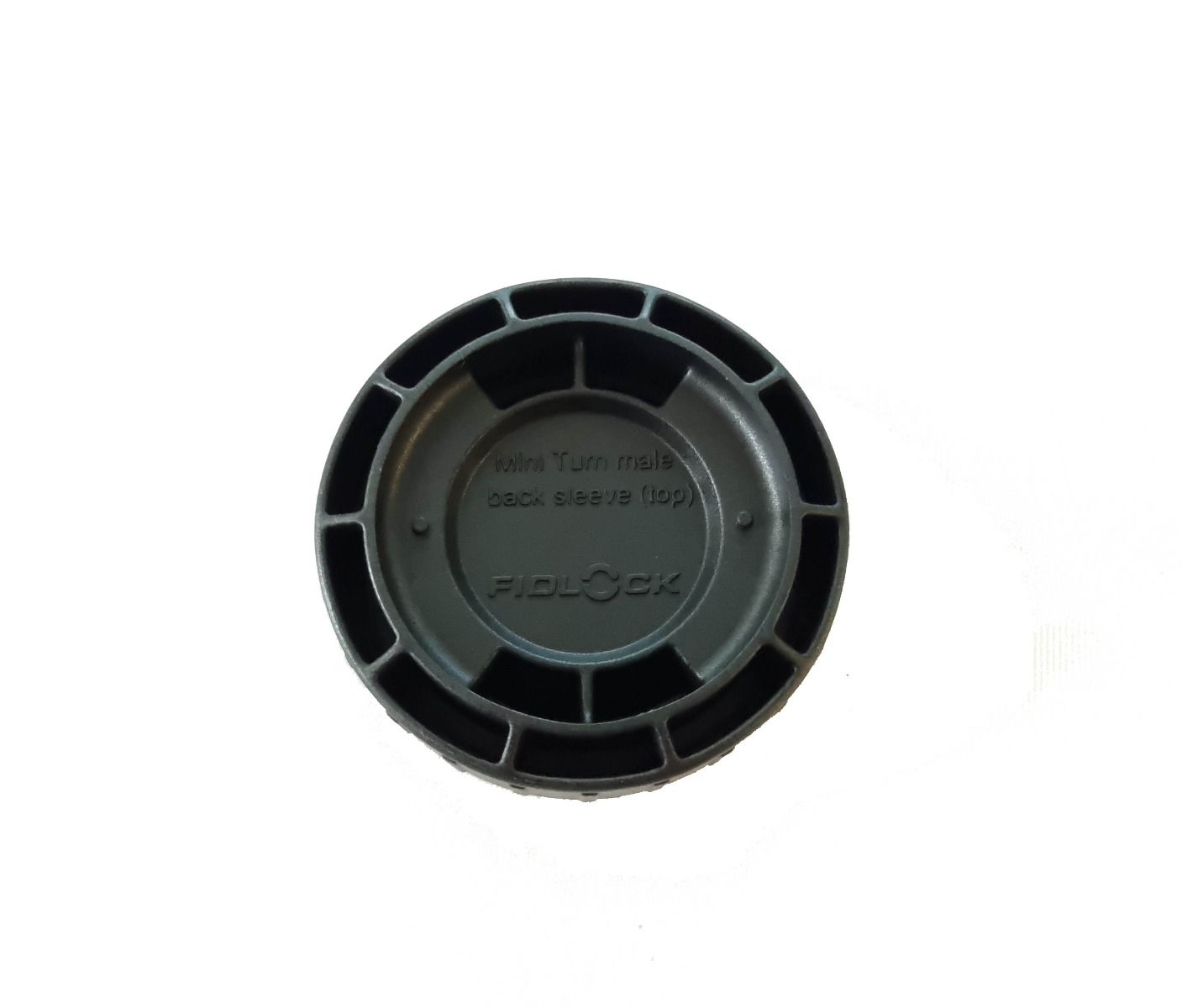

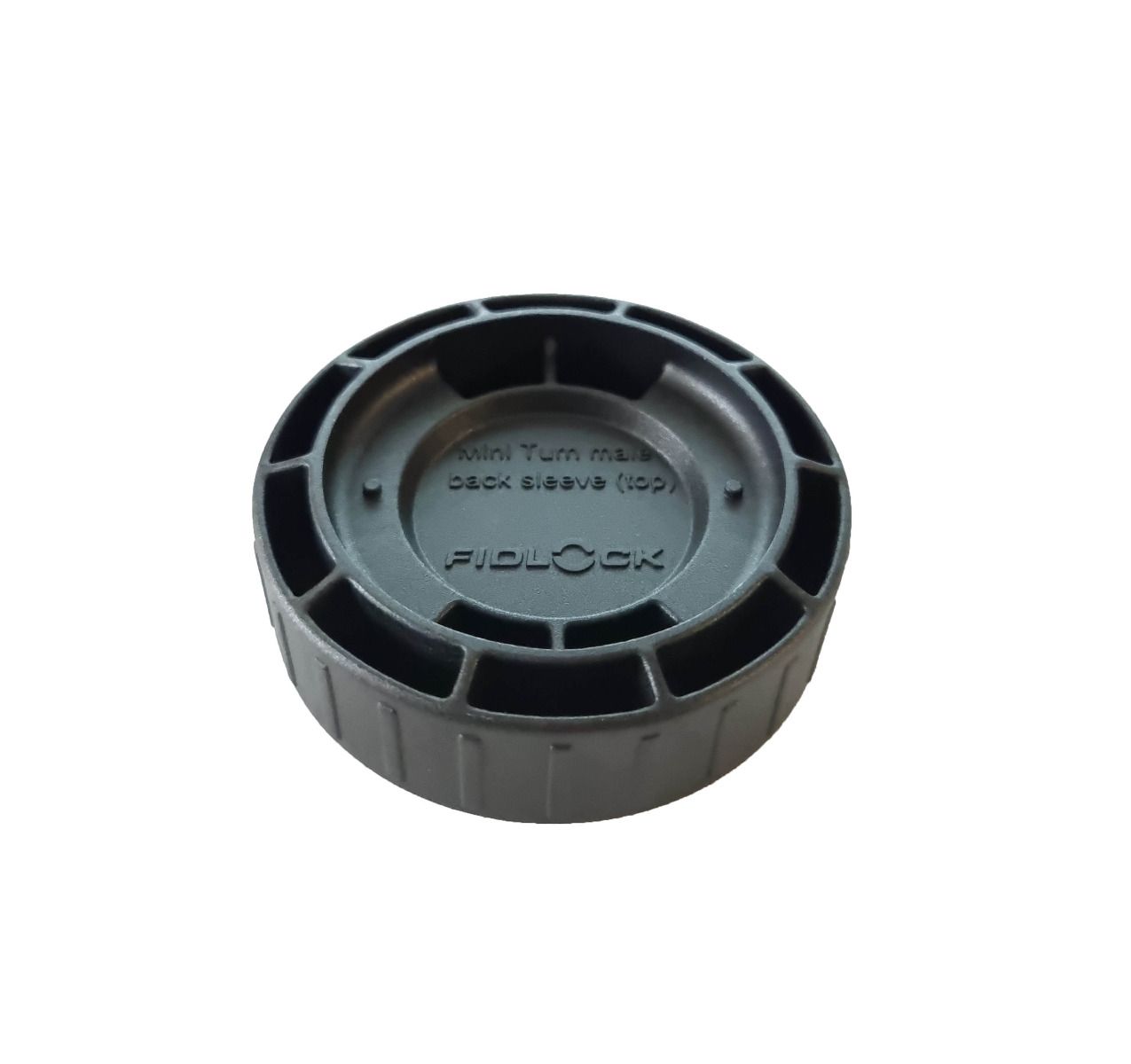

Fidlock Tool 22 (PB)

This TOOL is a combination of TOOL 1 and TOOL 2, meaning you only need one TOOL for assembly of a MINI TURN thread fastener. To make assembly easier, it is best to purached two TOOLS.

Fitting

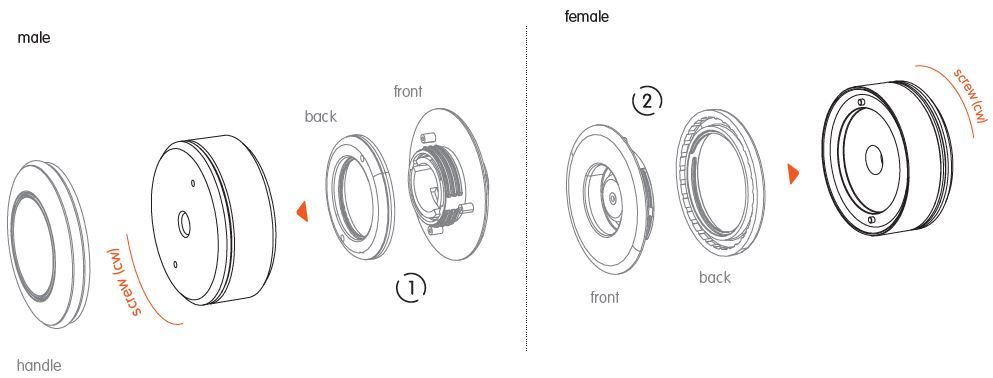

The MINI TURN thread is fitted in two simple steps using the same TOOL, TOOL 22. First the male upper fastener part (1), consisting of a back and front section, is screwed on in a clockwise direction. The same work step and TOOL is then used to fit the female lower fastener part (2). Finally the handle is clipped onto the male part and aligned. This TOOL is not suitable for mass production, these are convenient TOOLS to assemble samples.

Technical Data/Details

Material: PA66-GF

Diameter: 54mm

Used for: MINI TURN Thread
