Fidlock Tool 2 (PB)

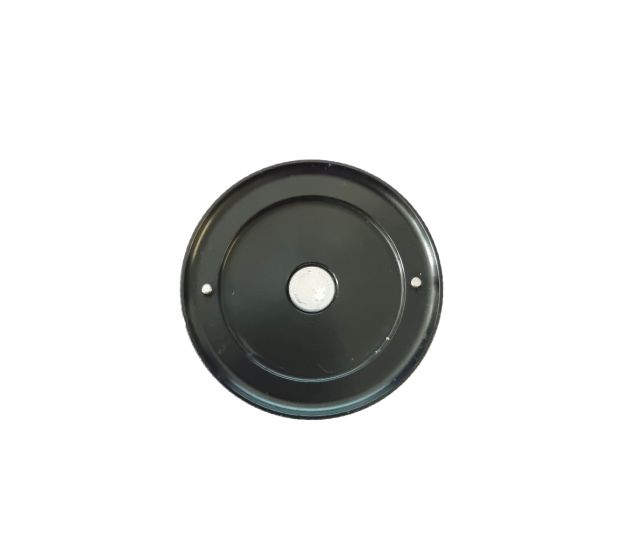

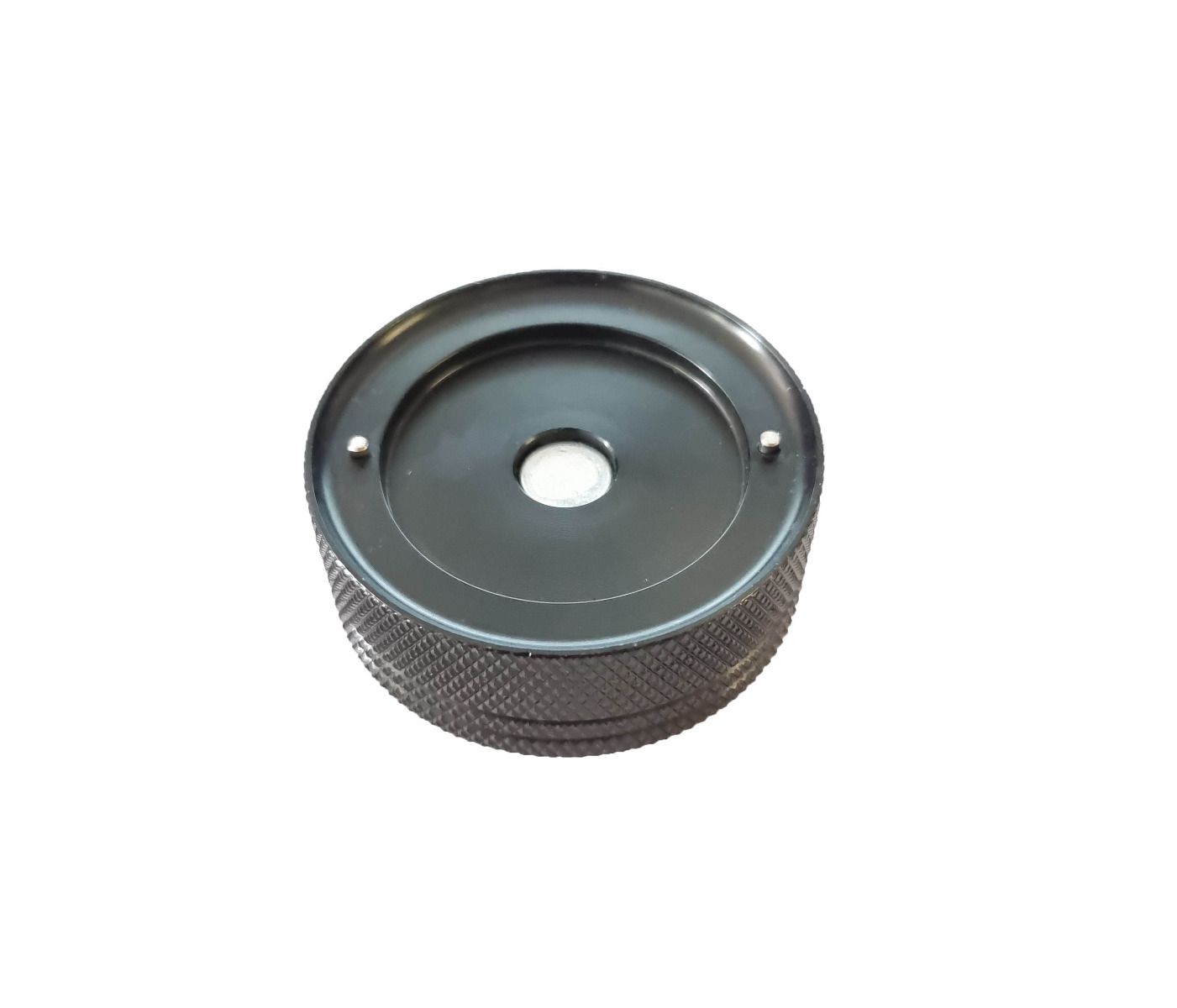

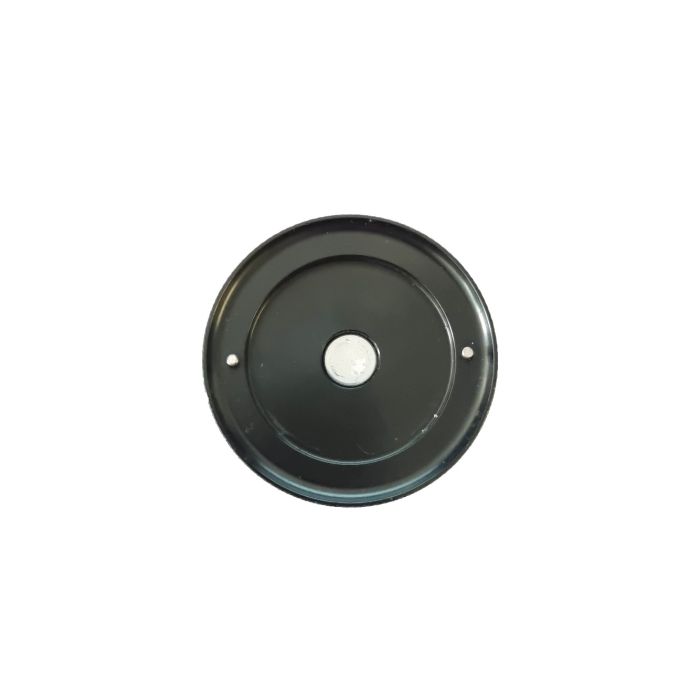

Tool with two pins for screwing the fastener’s threaded ring on by hand. An industrial drive
can be connected to the thread on the back section for the purposes of machine processing.

Fitting

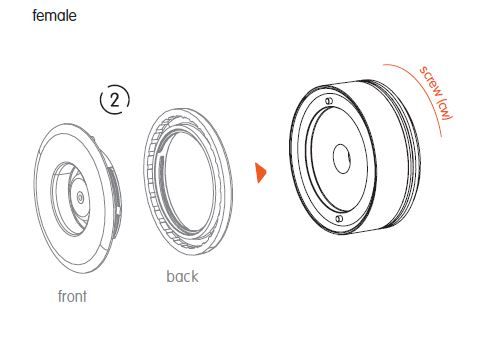

The MINI TURN thread is fitted with two simple work steps using TOOL1 and TOOL2. First the male upper fastener part (1), consisting of a back and front section, is screwed on in a clockwise direction using TOOL1. The same work step is then carried out for the female lower fasten er part (2) using TOOL2. Finally, the handle is clipped onto the male part and aligned.

Technical Data/Details

Material: Aluminium

Diameter: 52mm

Number of Rings: 2

Used For: Female MINI TURN Thread
