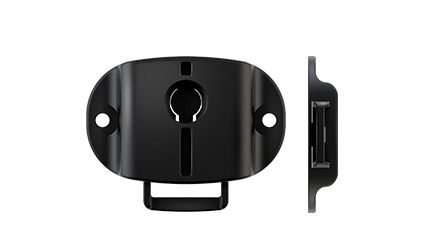

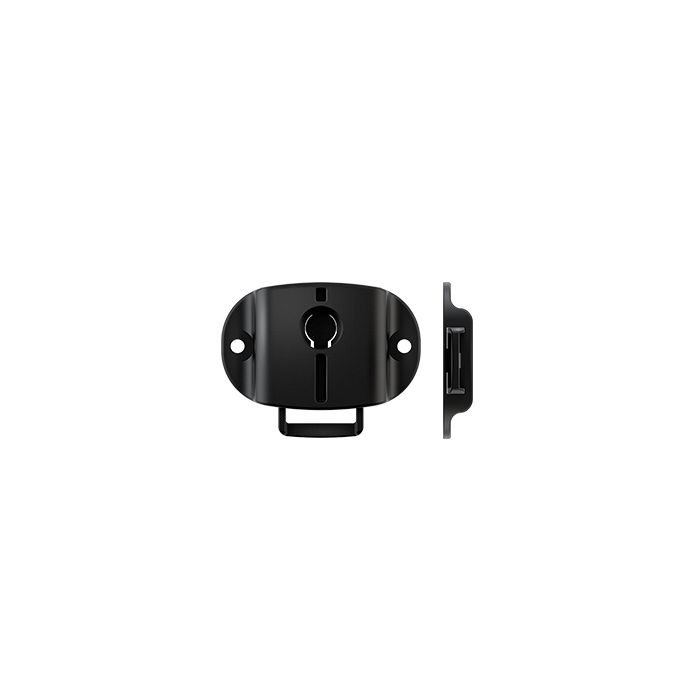

Fidlock SNAP Pull Female M20 - 05110
Pull not push this is the principle behind the SNAP pull female M20 that can be riveted “Invisibly” on the reverse of the bag flap or against a logo plate. The fastener can be combined with all existing SNAP male versions.
Pull not push this is the principle behind the SNAP pull female M20 that can be riveted “Invisibly” on the reverse of the bag flap or against a logo plate. The fastener can be combined with all existing SNAP male versions.
Applications
The SNAP pull female M 20 triumphs with its maximum flexibility and is optimally suited for being applied to all kinds of bags – for the bicycle, on carrier bags, rucksacks or even school bags. With regard to the application, alignment and adjustment of carrying straps, SNAP pull proves to be very reliable.
Fitting
The SNAP pull female M 20 gets riveted or screwed on choosen material.
Specifications
for strap width |
20,0 mm |
Trigide strap |
single-layer |
Dimensions (W x L x H) |
61,5 x 48,3 x 11,8 mm |
Note |
The SNAP pull female M 20 is compatible with the SNAP male M bolt series and the SNAP push M series |
Weight |
11,00 g |
Load capacity |
40,00 kg |
Opening |
pull belt strap |
