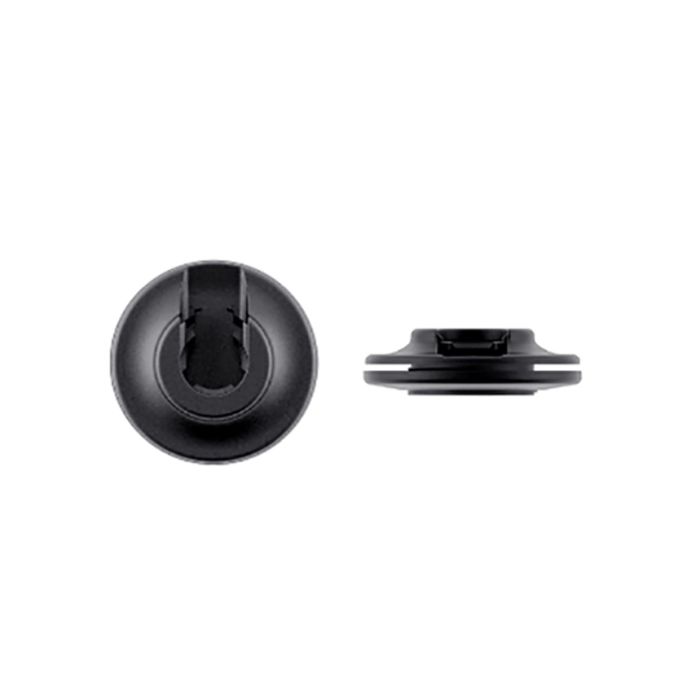

Fidlock SNAP Female S Screw High - 05200
The lower fastener part SNAP female S screw high is designed for thicker materials of 2.5 to 3.5mm. The fastener is compatible with all SNAP male S.
The lower fastener part SNAP female S screw high is designed for thicker materials of 2.5 to 3.5mm. The fastener is compatible with all SNAP male S.
The versatile SNAP fasteners are suitable for many different applications, for example to close or combine bags or clothes or attach skiing goggles to ski helmets. It is also possible to fasten accessories or larger objects such as an optional outside pocket or a keyring to a rucksack, a footmat in the car or an easily removable bicycle basket.
The SNAP female S screw high can be fitted by means of a threaded swivel and a face spanner. It is compatible with all available SNAP upper parts (male).
|
For material thickness |
2,5 - 3,5 mm |
|
Diameter |
32,7 mm |
|
Hole circle diameter |
23,0 mm |
|
Min. overall height (with Version B male) |
11,0 mm |
|
|
|
|
Weight |
5,80 g |
|
Load capacity |
2,00 kg |
|
Opening |
lateral slide |
The Fidlock concept
Fasteners featuring the Fidlock concept are based on one-of-a-kind technology and combine the advantages of two fastening concepts in a completely new way. Strong magnets make them easy to close and secure snap functionality ensures a continuously high locking force.
