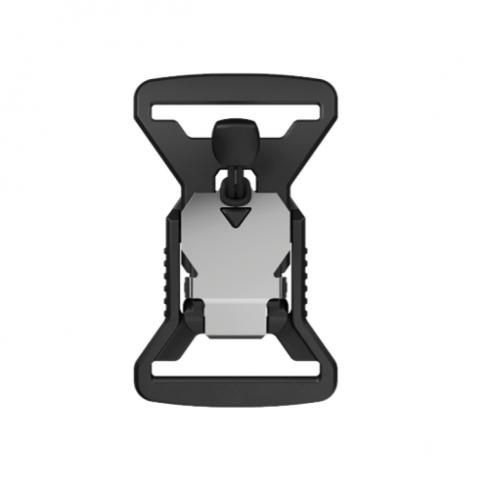

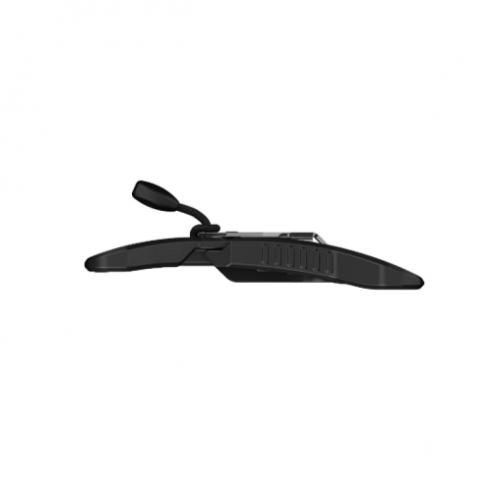

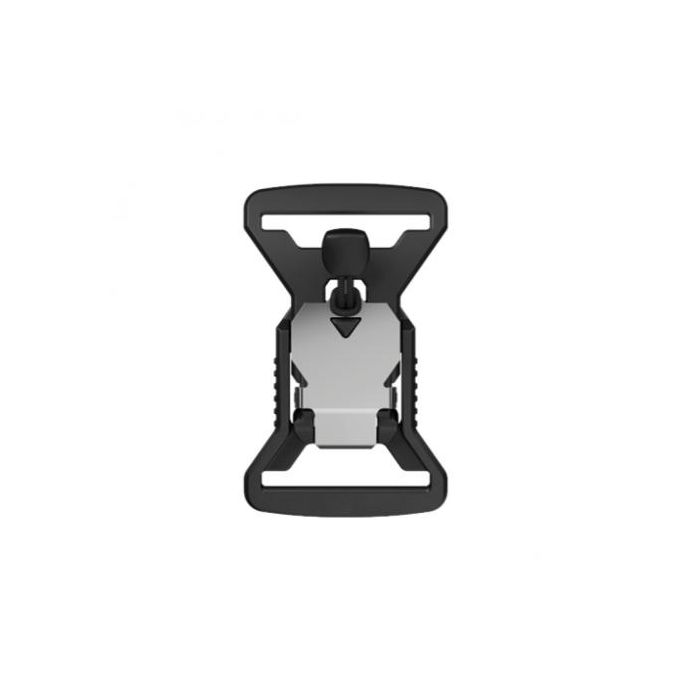

The V-BUCKLE was developed for application areas where security is key. This SB (single bar) version offers fixed attachment on 40 mm wide straps and is not adjustable. All V-BUCKLE female parts fit all V-BUCKLE male parts.
The V-BUCKLE product family can be used for versatile products. Possibilities include application areas such as footwear, bags, sports & outdoor gear and carrying systems.
The V-BUCKLE is simply attached to the relevant straps. Depending on the combination of single bar and ladderlock components, the straps can be adjusted on one side, both sides or feature no adjustability.
Available with or without pull tab, hole dimensions: 4 x 2 mm. Also available with black flap.
Suitable for safety-related applications.
The use on dog leashes is excluded. The use on dog collars only permitted after intensive testing by the customer.Opening mechanisms - liftWebbing width - 40 mmWeight - 25,60 gWidth - 49,0 mmHeight - 13,5 mmLength - 80,0 mmmaterial - PA66GF30, stainless steel (glossy)Static breaking load N - 686 NStatic breaking load KG - 70 kgColour - blackAssembly - strap
