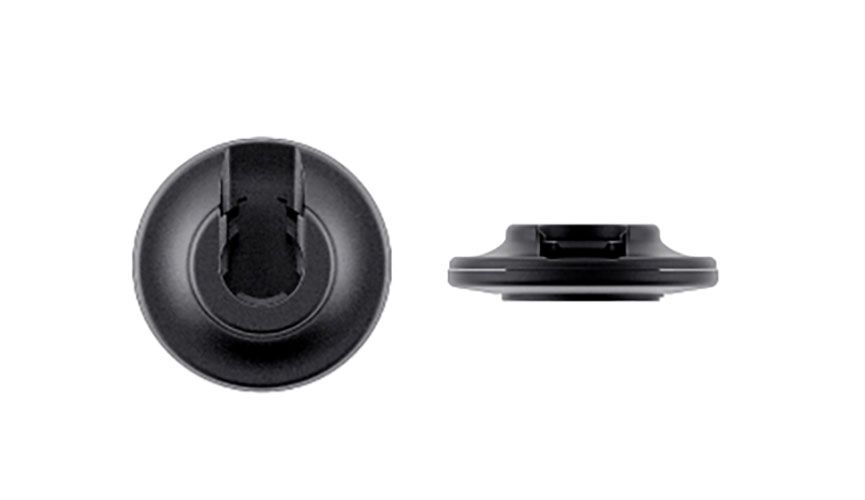

Fidlock SNAP Female S Screw Low - 05100
The lower fastener part SNAP female S screw low is suitable for a variety of applications thanks to its simple tting with screw collar in materials with a thickness of 0.5 to 1.5mm. It is compatible with all SNAP male S.
The lower fastener part SNAP female S screw low is suitable for a variety of applications thanks to its simple tting with screw collar in materials with a thickness of 0.5 to 1.5mm. It is compatible with all SNAP male S.
We would recommend to use our tools TOOL6/TOOL23 (Front) and TOOL3/TOOL7/TOOL23 (Back) for proper assembly.
Applications
The versatile SNAP fasteners are suitable for many different applications, for example to close or combine bags or clothes or attach skiing goggles to ski helmets. It is also possible to fasten accessories or larger objects such as an optional outside pocket or a keyring to a rucksack, a footmat in the car or an easily removable bicycle basket.
Specifications
|
For material thickness |
0,5 - 1,5 mm |
|
Diameter |
32,7 mm |
|
Hole circle diameter |
20,0 mm |
|
Min. overall height (with Version A male) |
9,5 mm |
|
For material thickness |
0,5 - 1,5 mm |
|
Diameter |
32,7 mm |
|
Hole circle diameter |
20,0 mm |
|
Min. overall height (with Version A male) |
9,5 mm |
