Fidlock SNAP Male S 6 Spring - 05060

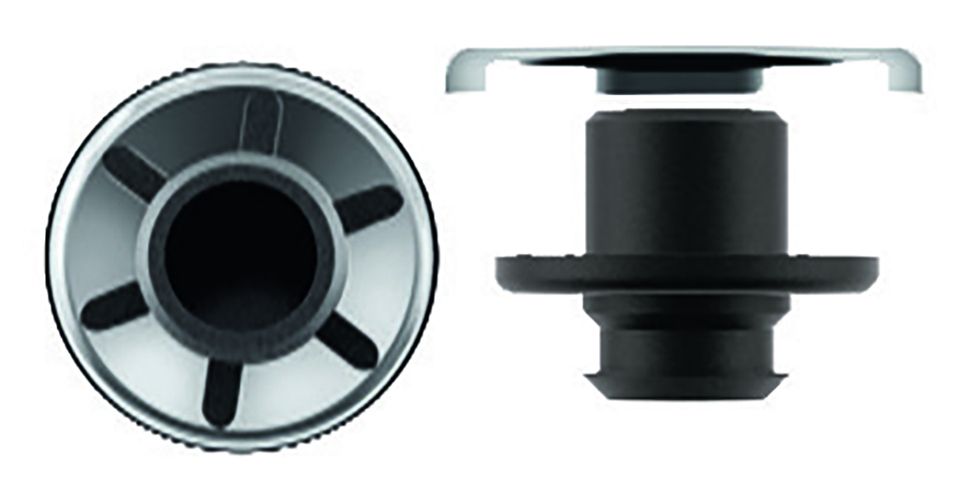

This upper part (male) of the SNAP series features a 6,0 mm long, cylindrical stem onto which an axle clamp ring is pressed (press required).
This upper part (male) of the SNAP series features a 6,0 mm long, cylindrical stem onto which an axle clamp ring is pressed (press required). Suitable for concealed fitting, it is compatible with all SNAP fema-le S products.
Technical Data
Hole circle diameter - 8,0 mm
Height - 6,0 mm
Note: The male parts are fully rotatable (e.g. belt attachments). The SNAP male S 6 spring is suitable for a material thickness of 0 to 3 mm for concealed fitting. Not suitable for safety-related applications.
Material / Colour
Material - PA66-GF
Material axle clamp ring - galvanised steel
Colour - Black
Other Features
Weight - 2,45 g
Static Breaking Load - 2,00 kg
