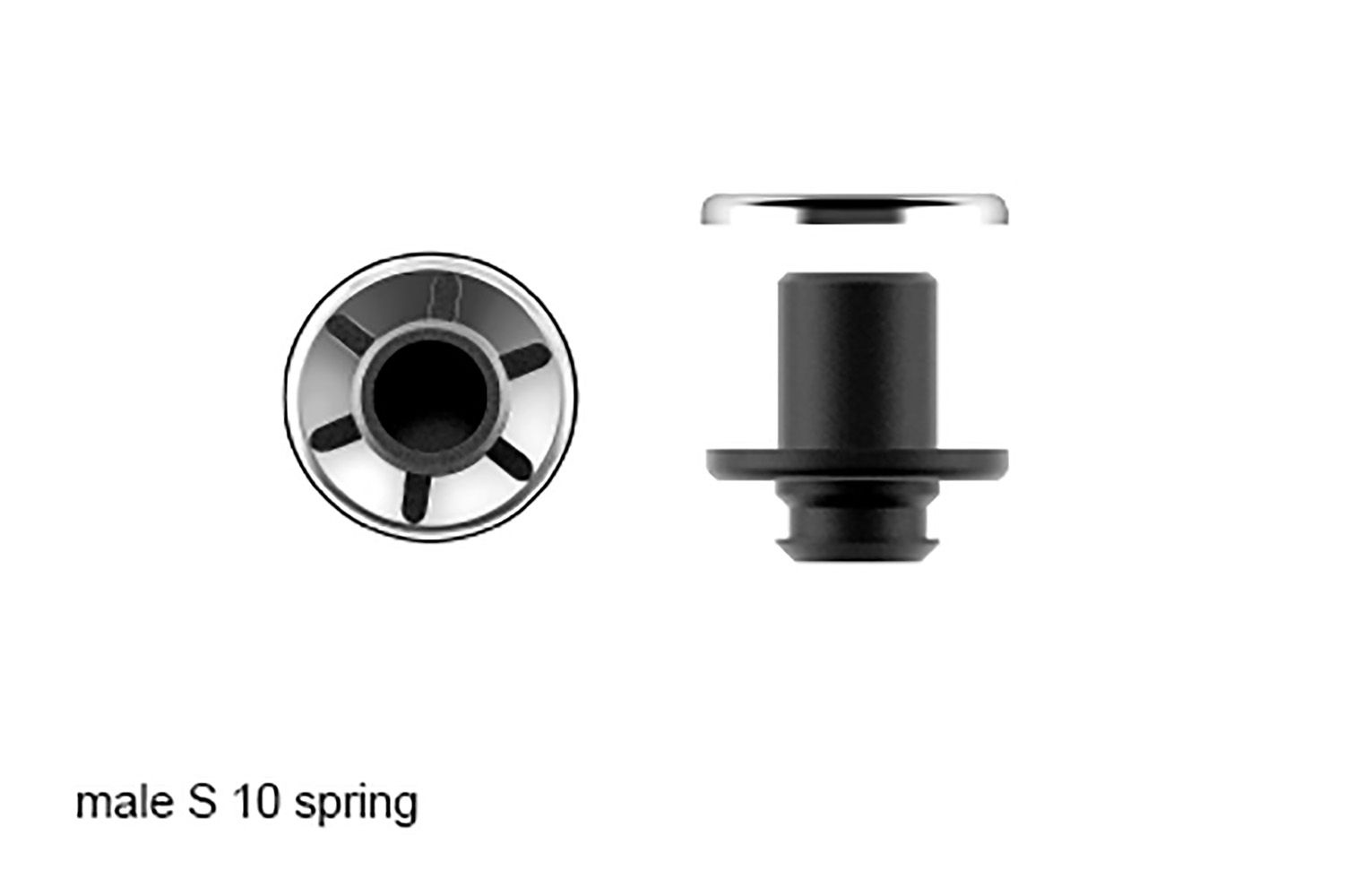

Fidlock SNAP Male S 10 Spring - 05062
The SNAP male S 10 spring features a 10 mm long, cylindrical stem onto which an axle clamp ring is pressed (press required), allowing concealed fitting. This upper part (male) is compatible with all SNAP female S lower parts.
The SNAP male S 10 spring features a 10 mm long, cylindrical stem onto which an axle clamp ring is pressed (press required), allowing concealed fitting. This upper part (male) is compatible with all SNAP female S lower parts.
Technical Data
Hole circle diameter: 8,0 mm
Height: 10,0 mm
Note: The male parts are freely rotatable (e.g belt attachments). The SNAP male S 10 spring is suitable for a material thickness of 0 to 7 mm for concealed fitting. Not suitable for safety-related appliations.
Material / Colour
Material: PA66-GF
Material axle clamp ring: Galvanised Steel
Colour: Black
