Fidlock SNAP male L Bolt -M5 x 7mm - 05155

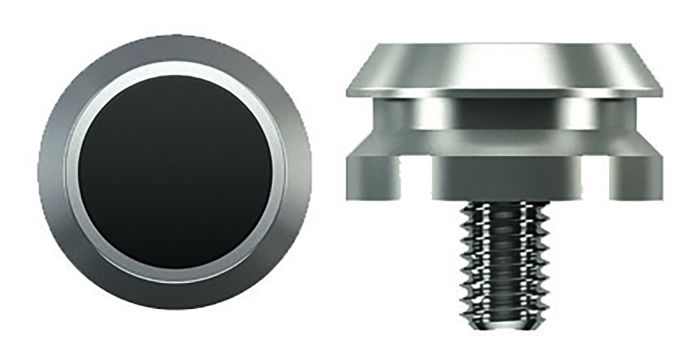

A screw and fastener in one, the SNAP male L Bolt is the larger Version of the SNAP M Bolt. With a 7,0 mm long M5 thread and a head-width of 17,2 mm it can be combined with the SNAP L female components, creating a robust fastening or fixing point. The M5 thread makes the SNAP male L Bolt ideally suitable for bikes or applications in mechanical engineering.
A screw and fastener in one, the SNAP male L Bolt is the larger Version of the SNAP M Bolt. With a 7,0 mm long M5 thread and a head-width of 17,2 mm it can be combined with the SNAP L female components, creating a robust fastening or fixing point. The M5 thread makes the SNAP male L Bolt ideally suitable for bikes or applications in mechanical engineering.
Technical Data:
For material thickness: 7,0 mm
Hole Circle Diameter: 5,0 mm
Diameter: 17,2 mm
Lenght shaft: 7,0 mm
Note: The male parts are fully rotatable. Can be combined with SNAP push female L and SNAP pull
female L. Not suitable for safety-related applications.
Material / Colour:
Material: Aluminium. steel
Colour: aluminium
Fitting: Screw into M5 threaded nut
Other Features
Weight: 7,00 g
Static Breaking Load: 60,00 kg
